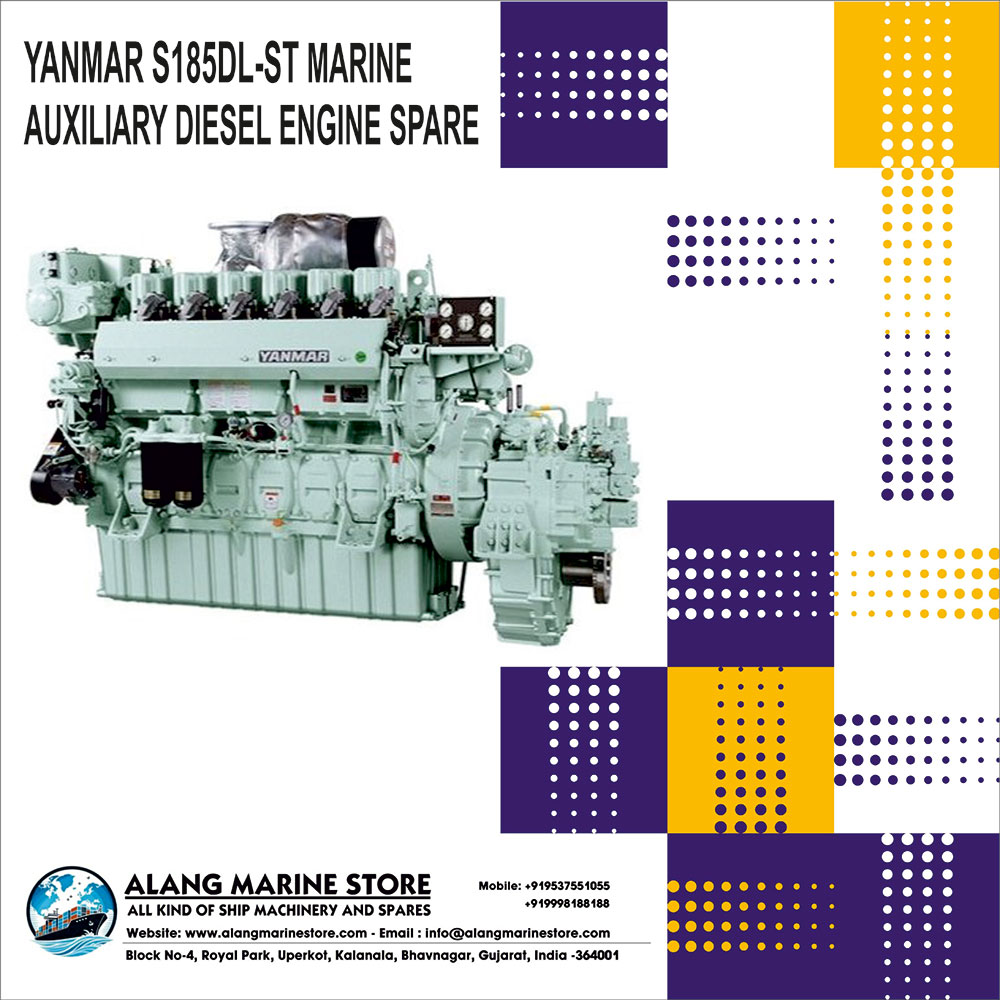

YANMAR S185DL-ST MARINE AUXILIARY DIESEL ENGINE SPARE
YANMAR S185DL-ST MARINE AUXILIARY DIESEL ENGINE SPARE | YANMAR S185DL-ST | S185DL-ST MARINE AUXILIARY DIESEL ENGINE SPARE | S185DL-ST
YANMAR S185DL-ST MARINE AUXILIARY DIESEL ENGINE SPARE is new marine engine component made by YANMAR, If you are interested in this product then please click on PRODUCT INQUIRY button and submit required information, we will verify its availability and will share its quotation within a day or two on your provided email.
If you want to receive quote for YANMAR S185DL-ST MARINE AUXILIARY DIESEL ENGINE SPARE or for any of your other requirement of such components, please email us on info[at]alangmarinestore.com or just send WhatsApp Message on +919537551055 or +919998188188.
Description
| SN | DESCRIPTION | PART NO. |
| 1 | NEEDLE VALVE (DLF150TB308) | 141616-53030 |
| 2 | PACKING FOR CYL HEAD | 146644-01310 |
| 3 | FUEL OIL BRANCH PIPE | 146613-59190 |
| 4 | FUEL OIL RETURN PIPE | 146603-59180 |
| 6 | FUEL PIPE COOLING | 146603-59420 |
| 7 | FUEL PIPE COOLING | 146603-59440 |
| 8 | FUEL OIL RETURN PIPE | 146613-59500 |
| 9 | Exhaust Valve Seat (Over Size 0.5) | 146613-11950 |
| 10 | CYLINDER HEAD COMPLETE ASSEMBLY | 746613-11012 |
| 11 | Suction Valve Seat (Standard) | 146613-11080 |
| 12 | Adjusting Screw | 139653-11580 |
| 13 | Rocker Arm Shaft | 146613-11250 |
| 14 | O-Ring (Upper) | 24316-35022 |
| 15 | O-Ring (Lower) | 24311-000200 |
| 16 | O-Ring (Upper) | 24316-000280 |
| 17 | O-Ring (Lower) | 24311-000250 |
| 18 | Exhaust Valve Seat (Standard) | 146613-11090 |
| 19 | Valve Bridge Ass’y | 146613-11510 |
| 20 | Suction Valve Seat (Over Size 0.5) | 146613-11940 |
| 21 | Exhaust Valve Guide | 141616-11171 |
| 22 | Suction Valve Guide | 146613-11160 |
| 23 | Stem Seal (Suction) | 141616-11750 |
| 25 | Bush for Rocker Arm Shaft | 146613-11220 |
| 26 | Contact Piece | 139653-11390 |
| 27 | Fuel Injection Pipe | 746613-59200 |
| 28 | Push Rod Ass’y | 146613-14552 |
| 29 | Fuel Oil Return Pipe Ass’y (B) | 146613-59220 |
| 30 | C.O. Pipe (Bonnet Lower ~ Main Pipe) | 146603-59440 |
| 31 | Tappet Ass’y | 139653-14200 |
| 32 | Roller | 137600-14220 |
| 33 | Pin for Roller | 137676 -54231 |
| 34 | Tappet | 139653 -14200 |
| 35 | Tappet Seat (Lower) | 139653 -14420 |
| 36 | Tappet Guide | 146613 -14241 |
| 37 | O-Ring | 24321-000500 |
| 38 | Oil Sheild Bush | 139653-14252 |
| 39 | Cylinder Liner | 146613- 01101 |
| 40 | Rubber Packing | 146513 -01291 |
| 41 | Rubber Packing | 146613 – 01301 |
| 42 | Crankpin Bearing STANDARD | 146613- 23700 |
| 43 | Packing (Mount) | 146613- 54040 |
| 44 | Delivery Valve Spring Retainer | 137678- 51340 |
| 45 | Delivery Valve Spring | 137600- 51332 |
| 46 | Delivery Valve Spring Shoe | 137600- 51362 |
| 47 | O-Ring | 23416- 000350 |
| 48 | Packing for Cyl. Head (Standard) (t=1.0) | 146644 – 01340 |
| 49 | Cylinder Liner Packing | 146644 – 01310 |
| 50 | Oil Shielding Disc | 146613- 54220 |
| 51 | Fuel Pump Mount | 146613- 54011 |
| 52 | O-Ring | 24311- 000210 |
| 53 | Plate Spring | 138613 -23290 |
| 54 | Piston Pin Bearing | 146613 -23120 |
| 55 | PISTON RING SET(55577) | 746613 -22570 |
| 56 | PISTON ASS’Y | 746613 -22091 |
| 57 | Circlip | 22252 -000820 |
| 58 | Hose Circlip | 23000- 060000 |
| 59 | Oil Shield Bush Cover | 139653-14260 |
| 60 | Oil Shield Cap | 147644-14530 |
| 61 | Push Rod Assay | 146613 -14552 |
| 62 | C.O. Inlet Pipe (Bonnet Lower ~ Nozzle) | 146603- 59460 |
| 63 | C.O. Inlet Pipe (Nozzle ~ Bonnet Lower) | 146603- 59490 |
